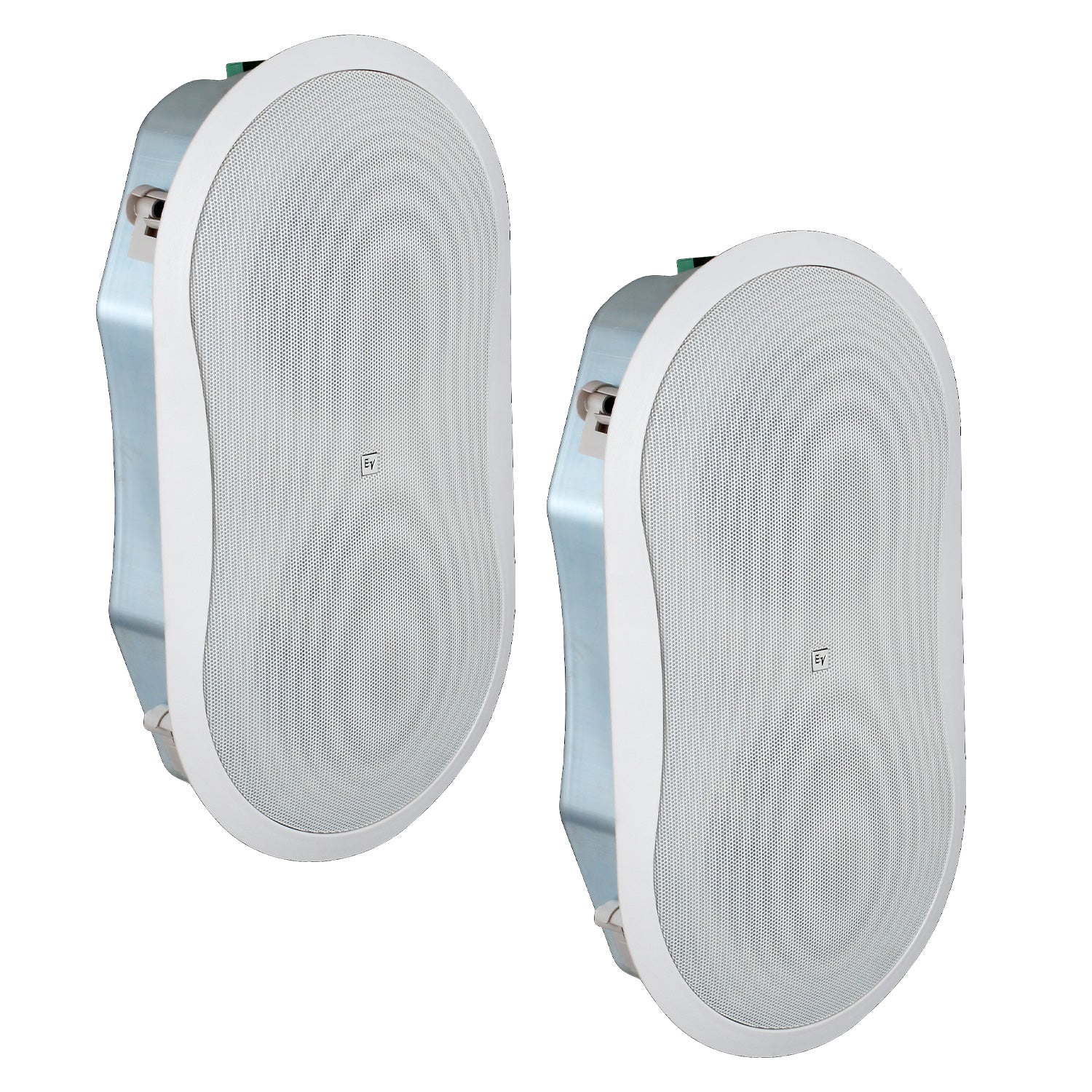

Electro-Voice EVID FM6.2 - Flush Mount In-Wall Speaker System (Pair)

The EVID FM6.2 loudspeaker system from ElectroVoice is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 6.5 inch two-way loudspeaker coupled with a 6.5 inch passive radiator and an internal line-matching transformer. The loudspeaker features 6.5 inch low-frequency cone and hightemperature voice-coil assembly along with a 6.5 inch long excursion passive radiator and titanium coated dome tweeter.

The EVID FM6.2 loudspeaker utilizes a crossover network, centered at 3,300 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the FM6.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels. The FM6.2 utilizes a transformer that offers a selection of 7.5, 15, 30, or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines. The wattage is selected via a convenient switch on the front baffle. The unit can also be operated as an 8-ohm speaker via the same front panel selector switch.

The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel is constructed from heat resistant ABS. The rear enclosure is constructed from zinc-plated, steel. The rear enclosure provides an optimum internal volume, ensuring extended low-frequency performance. It is constructed from heavy-gauge, rugged steel. The steel rear enclosure was optimized using FEA to virtually eliminate panel resonance. The entire enclosure is less than 4 inches deep providing an easy installation into nearly any tight wall or ceiling space. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker and provides pass through to additional speakers.

FM6.2 loudspeakers provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Features:

• Shallow profile, ideal for tight wall or ceiling spaces
• Tuned passive radiator extends bass, enhances performance
• High quality 1-inch titanium dome tweeter
• Full-bandwidth overload protection
• 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
• Front-panel mode/wattage selector
• Fully-sealed enclosure provides superior isolation to protect adjacent rooms
• Secure Phoenix-style pass-through connectors for easy wiring and installation.
• Four point quick mounting tabs for fast attachment in any wall cavity
• Can-mounted transformer for enhanced rigidity
• Ribbed back can eliminates flexing
