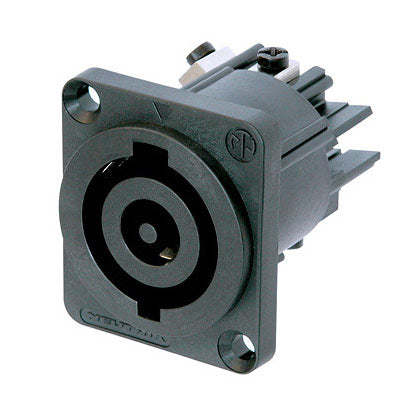

Neutrik NAC3MP-HC Powercon 32 Amp Male High Current Cable Connector with Screw Terminals - Black


  • Dale #:

    NEUT-NAC3MPHC
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

PowerCON 32 Amp chassis connector.The 32 Amp PowerCon is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high p... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

PowerCON 32 Amp chassis connector.

The 32 Amp PowerCon is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Termination on both cable and panel types is via screw-type terminals for stranded wires 2.5 to 6.0 sq.mm (AWG 14-10). Cable diameter range 8.0-20.0mm. Panel hole cutout 30.0mm diamater.Features:
  • 250 V ac, 32 Amp single-phase (for ambient temperatures up to 35°C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Cable O.D. Range: 8 - 20 mm
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
  • Excellent cable handling and protection
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved

More +

Product Specs

Product
Connector TypePowerCon
Gendermale
Electrical
Contact resistance≤ 3 mohms
Dielectric strength4 kVdc
Insulation resistance> 10 Gohms (initial)
Rated current per contact32 A (30A for cUL)
Rated voltage250 V
Mechanical
Lifetime> 1000 mating cycles
Wire size 2.5 - 6 mm²
Wire size14 - 10 AWG
Wiringscrew terminals
Locking deviceQuick Lock
Mounting directionfront & rear
Material
Contact plating4 µm Ag
ContactsBronze (CuSn0.2)
Locking elementSteel Ck67
ShellPolyamide (PA 6.6 25 % GR)
Environmental
ApprovalsUL,VDE,JET
FlammabilityUL 94 V-0
Protection classIP 20 (mated)
Savety requirementsEN/IEC 61984
SolderabilityComplies with IEC 68-2-20
Temperature range-25 °C to +70 °C
