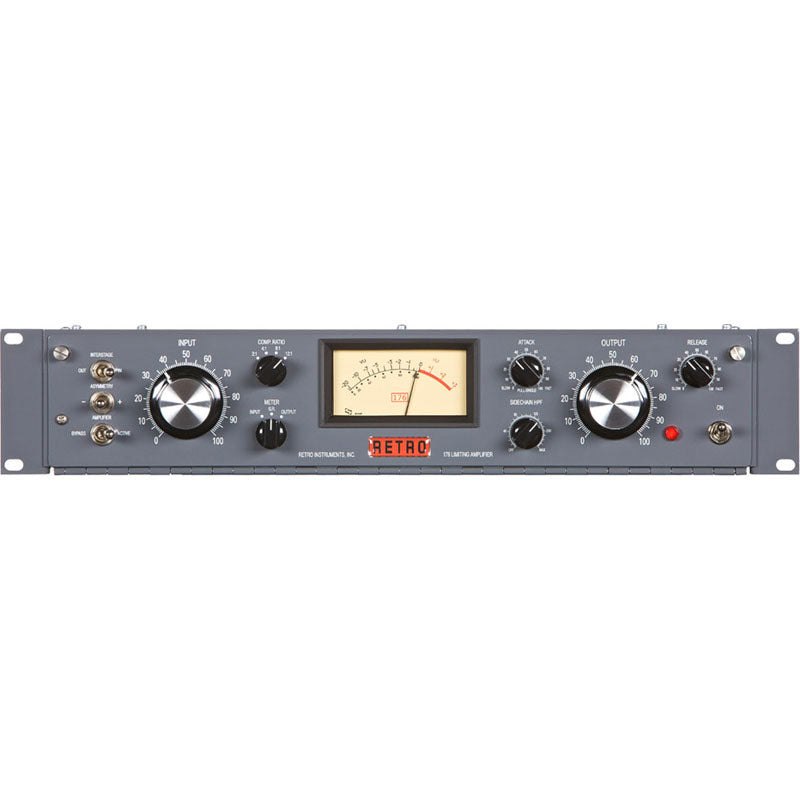

Retro Instruments 176 Leveling Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Retro 176 is based on a Bill Putnam classic, the UA 176. The Retro 176 faithfully reproduces the sound of the 1960s original with new features for the modern recording studio. The Retro 176 provides one of the most desirable compression signatures in recording history.
Features:
- Precision Knob scales for easy recallability
- Continuously variable attack and release time
- Four settings of compression ratio from soft compression to limiting (2:1, 4:1, 8:1, 12:1)
- Wide-Range Sidechain Highpass Filter
- Vocal Asymmetry Tool
- Hard-wire Bypass Switch
- Interstage Transformer Bypass Switch

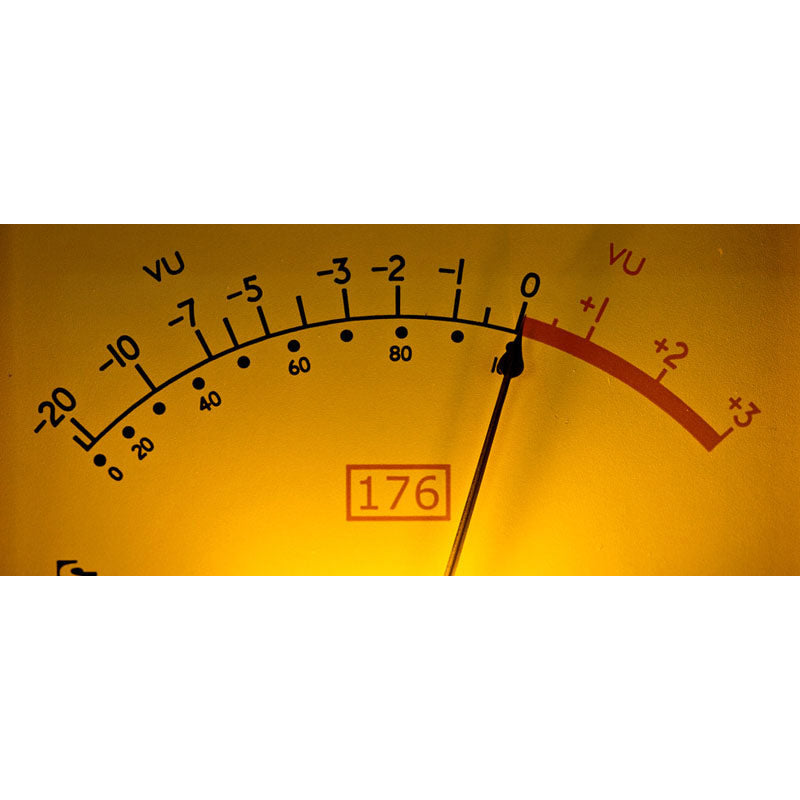

- High Quality VU Meter switchable between Input, Output and Gain Reduction
- XLR input and output connections
- IEC power connector
- 115/230V AC Mains
- Integral tube balance test
- Easy stereo strapping of two or more units
- Selected NOS tubes and components
| gain reduction | 20 dB of available |
| Signal to noise ratio | greater than 76dB |
| frequency response | Flat within 0.5dB from 20-20,000Hz |
| Harmonic Distortion | less than 1% from 0-15dB gain reduction |
The Retro 176 is based on a Bill Putnam classic, the UA 176. The Retro 176 faithfully reproduces the sound of the 1960s original with new features for the modern recording studio. The Retro 176 provides one of the most desirable compression signatures in recording history.
Features:
- Precision Knob scales for easy recallability
- Continuously variable attack and release time
- Four settings of compression ratio from soft compression to limiting (2:1, 4:1, 8:1, 12:1)
- Wide-Range Sidechain Highpass Filter
- Vocal Asymmetry Tool
- Hard-wire Bypass Switch
- Interstage Transformer Bypass Switch
- High Quality VU Meter switchable between Input, Output and Gain Reduction
- XLR input and output connections
- IEC power connector
- 115/230V AC Mains
- Integral tube balance test
- Easy stereo strapping of two or more units
- Selected NOS tubes and components
| gain reduction | 20 dB of available |
| Signal to noise ratio | greater than 76dB |
| frequency response | Flat within 0.5dB from 20-20,000Hz |
| Harmonic Distortion | less than 1% from 0-15dB gain reduction |
