Retro Instruments STA-LEVEL Replica of 1956 Gates Sta-Level Compressor

  • Dale #:

    REIN-STALEVEL
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Retro Sta-Level is a replica of the legendary 1956 Gates Sta-Level. The Sta-Level dominated the sound of hit radio in the 1960's. Now these super musical sounding compressors have found their way into today's hits. The Retro Gold Edition celebrates fifty years of the products existence. The S... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Retro Sta-Level is a replica of the legendary 1956 Gates Sta-Level. The Sta-Level dominated the sound of hit radio in the 1960's. Now these super musical sounding compressors have found their way into today's hits. The Retro Gold Edition celebrates fifty years of the products existence. The Sta-Level uses the coveted 6386 tube in a classic G.E. circuit design. Alternatively, the Gold Edition Sta-Level uses a pair of commonly available 6BJ6 tubes (stock). The customer has the choice to use their own 6386 they provide or the 6BJ6 provided with the purchase of the unit. The choice is yours and the sound is undeniably true to the original either way.

Features:

  • Gain Reduction Threshold: Continuously adjustable from +24dBm to -20dBm
  • Available Gain Reduction: 40dB
  • Total System Gain: 35dB (with standard input and output pads)

More +

Product Specs

Gain Reduction ThresholdContinuously adjustable from +24dBm to -20dBm
Available Gain Reduction40dB
Total System Gain35dB (with standard input and output pads)
Distortion1 percent or less from 0-30 dB gain reduction
Frequency Response± .25dB from 20-20,000 Hz
Noise-70dB or better referenced to gain reduction threshold
Output LevelContinuously adjustable from -40 dBm to +18 dBm
Input ImpedanceAccepts low impedance active or transformer balanced 0-600 Ohms
Output Impedance600 Ohm transformer balanced, terminated and resistive pad coupled

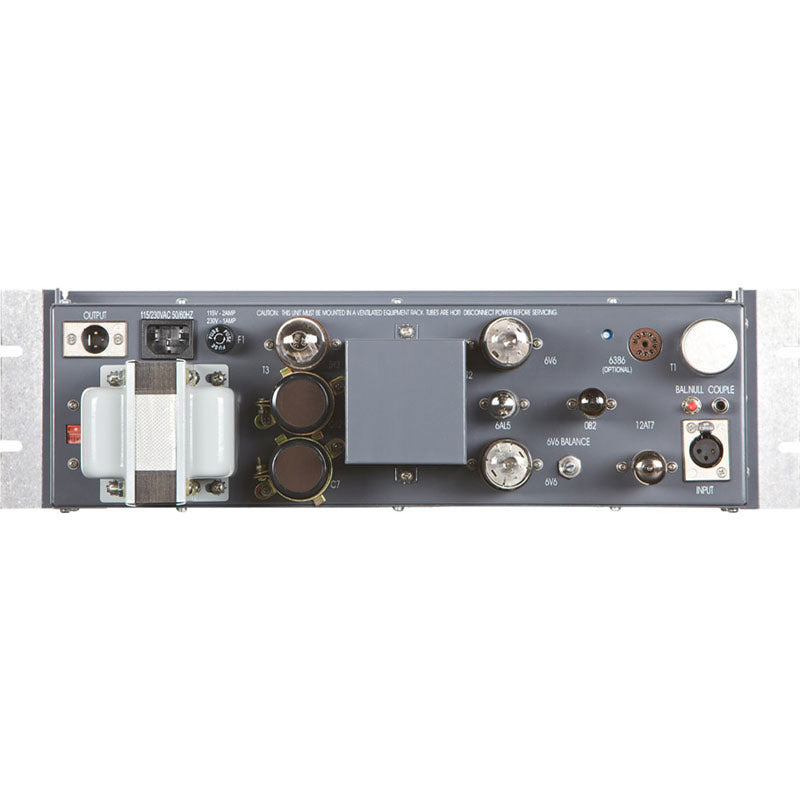

Tube Complement2-6BJ6), 1-12AT7, 2-6V6GT, 1-6AL5, 1-OB2, 1-5Y3
Power RequirementsThree prong IEC - Switchable 115-230 VAC - 50/60 Hz
Mounting Requirements3U metal rack 5.25 high, 19 wide, 8 deep

More +
