DALE SKU # RME-DPS2

RME DPS-2 - Linear Super Low Noise Dual Audio Power Supply with Mu-Filter and Sensor Technology

Sale price$1,299.00 Regular price$1,499.00
Save $200.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The new DPS-2 is an exceptional linear power supply that boasts not only impressive technical data but also a wide range of unique and highly useful features. For instance, the compact device features two differently filtered outputs. The housing and front panel of the DPS-2 are based on the ADI-2 series, accommodating RME's innovative circuitry design on only half rack width.

    Two Outputs - HF- and DC-filter on mains side
    The output Linear is a traditional DC output but is equipped with multi-stage passive and active filtering including a 30,000 μF capacitor bank, a ferrite choke as well as an active output filter with a hybrid voltage regulator.

    The second output is based on RME's proprietary μFilter technology. Here the signal from the pre-filtered Linear output is also processed by highly efficient active filters to achieve an exceptionally clean DC output with just a few µV (micro-volts) noise. In addition the output has sensor technology, which measures and adapts the output voltage directly at the DC connector of the supplied DC cable. Two DC Sensor connection cable with lockable or non-lockable DC plug 2.1 x 5.5 mm, (1 m) are included.

    As a result the output impedance and load regulation are extremely low, thus ensuring a clean output voltage of +12.0 V at 2.5 A load, completely avoiding any load-dependent voltage drops. Please note: only one output is usable at a time.

    Hum-free Operation - Optimum Performance without interference Noise
    The additional use of both a 2-stage HF filter and DC filter on the AC mains side enables the DPS-2 to deliver optimum performance without interference noise. This is also ensured by the 60 VA audio toroidal transformer with additional isolation winding and magnetic tape shielding, guaranteeing absolutely hum- and noise-free operation in any situation.

    If necessary the GND lift switch can be used to disconnect DC ground from PE (protective earth) to eliminate noise caused by ground loops. In this case safety is not affected since the primary part and the housing stay firmly connected to PE of the power inlet. In addition the DPS-2 comes with a ground terminal screw connection to earth other devices or to use an earthing other than PE for the audio power supply.

    Status display via multicolor front LEDs - LED AutoDark mode

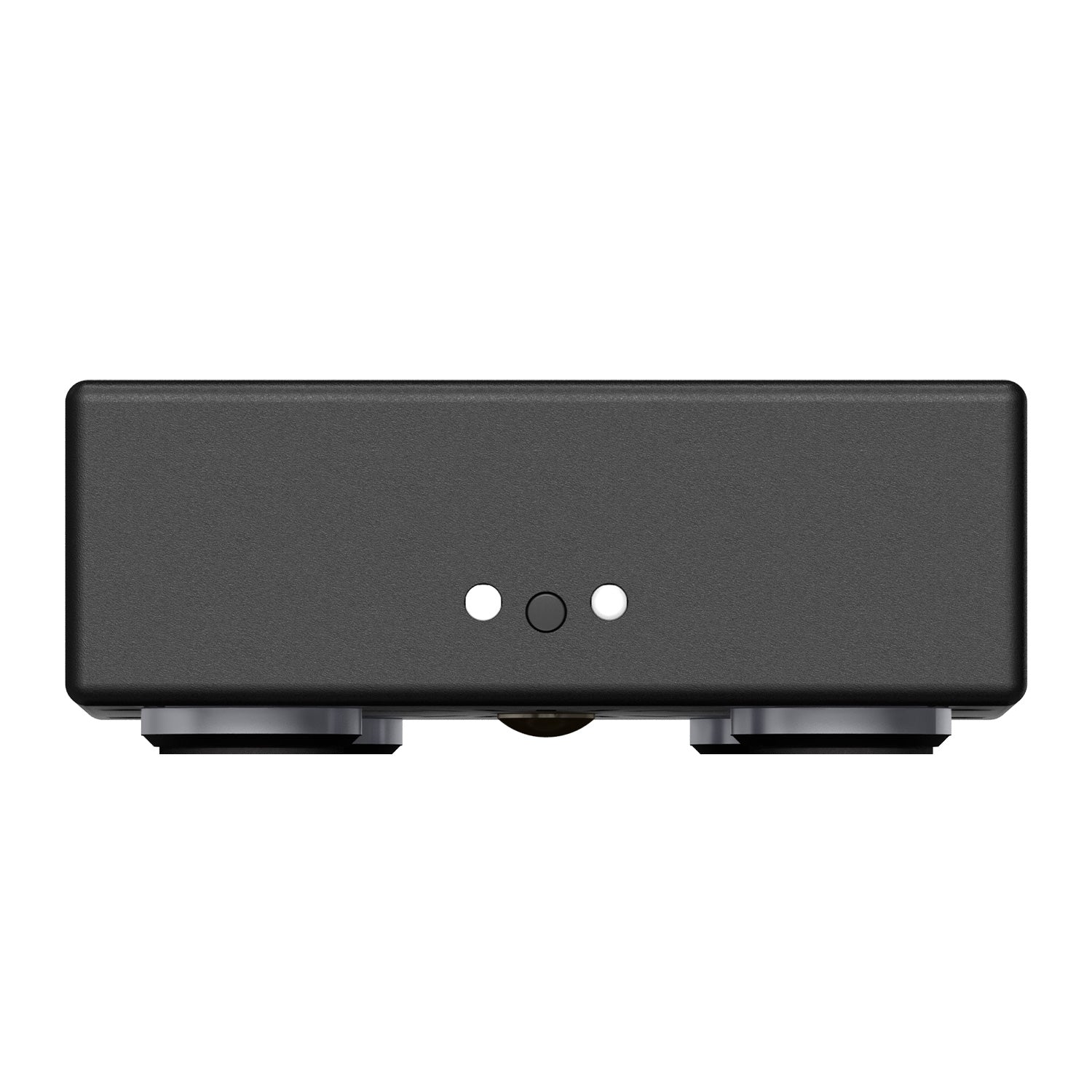

    The DPS-2 features two status LEDs on the front to provide a quick overview of the operating modes and error conditions (power, thermal and power overload, undervoltage, short, active output). A recessed push switch on the front panel enables the unique AutoDark mode with LEDs only lit on error states and shortly during power up.

    Another unique feature is the 24-page manual, which shows the technical data in detail using many measured values, illustrated with measurement diagrams. It also contains background information on linear and switching power supplies.

    AC Mains (Primary)
    Standard input voltage 115 V or 230 V, set by internal connector
    Input voltage range 95 V Ð 130 V or 200 V Ð 260 V
    Power consumption idle 1.6 watt
    Power consumption typical, 2 A load on Linear 38.5 watts
    Power consumption typical, 2 A load on _Filter 39.8 watts
    Fuses for 230 V 2 x 250 V / 0.63 A slow blow, size: 5x20 mm
    Fuses for 115 V 2 x 250 V / 1.2 A slow blow, size: 5x20 mm
    DC Linear Ð Secondary
    Maximum output voltage 12.2 V @ 0 A
    Minimum output voltage 11.5 V @ 3 A
    Continuous output current 2.5 A
    Continuous output power 30 watts
    Maximum output current 4 A
    Short circuit current <0.3 A
    Noise @ 1 A, AES17 30 _V, 3 _V A-weighted
    Noise @ 1 A, 100 kHz bandwidth 30 _V, 4 _V A-weighted
    Noise @ 2 A, AES17 111 _V, 14 _V A-weighted
    Noise @ 2 A, 100 kHz bandwidth 111 _V, 14 _V A-weighted
    Output impedance including cable 0.22 Ohm
    Load Regulation (0/1/2 A) 3.63 %
    Overload protection > 5 A
    Overheating protection > 80 ¡C (176 ¡F)
    Undervoltage detection < 9.5 V
    DC _Filter - Secondary
    Output voltage 12.0 V
    Continuous output current 2.5 A
    Continuous output power 30 watts
    Maximum output current 3.5 A
    Short circuit current <0.1 A
    Noise @ 0 - 3 A, AES17 < 2 _V, < 1 _V A-weighted
    Noise @ 0 - 3 A, 100 kHz bandwidth <3 _V, < 2 _V A-weighted
    Output impedance including cable 0.012 ohm
    Load Regulation (0/1/2 A) 0.20 %
    Overload protection > 3.2 A
    Overheating protection > 80 ¡C (176 ¡F)
    Undervoltage detection < 9.5 V
    General
    Dimensions (WxHxD) 130 x 44 x 205 mm, 5.1" x 1.7" x 8.1"
    Weight 1.89 kg (4.17 lbs)
    Temperature range +5 ¡C up to +40¡Celsius (41 ¡F up to 112 ¡F)
    Relative humidity < 75%, not condensing
    Package Contents DPS-2
    DC Sensor connection cable with lockable DC plug 2.1x5.5 mm, 1 m (3.3 ft)
    DC Sensor connection cable with DC plug 2.1x5.5 mm, 1 m (3.3 ft)
    Manual
    IEC Power cable, 1.5 m (4.9 ft)

    The new DPS-2 is an exceptional linear power supply that boasts not only impressive technical data but also a wide range of unique and highly useful features. For instance, the compact device features two differently filtered outputs. The housing and front panel of the DPS-2 are based on the ADI-2 series, accommodating RME's innovative circuitry design on only half rack width.

    Two Outputs - HF- and DC-filter on mains side
    The output Linear is a traditional DC output but is equipped with multi-stage passive and active filtering including a 30,000 μF capacitor bank, a ferrite choke as well as an active output filter with a hybrid voltage regulator.

    The second output is based on RME's proprietary μFilter technology. Here the signal from the pre-filtered Linear output is also processed by highly efficient active filters to achieve an exceptionally clean DC output with just a few µV (micro-volts) noise. In addition the output has sensor technology, which measures and adapts the output voltage directly at the DC connector of the supplied DC cable. Two DC Sensor connection cable with lockable or non-lockable DC plug 2.1 x 5.5 mm, (1 m) are included.

    As a result the output impedance and load regulation are extremely low, thus ensuring a clean output voltage of +12.0 V at 2.5 A load, completely avoiding any load-dependent voltage drops. Please note: only one output is usable at a time.

    Hum-free Operation - Optimum Performance without interference Noise
    The additional use of both a 2-stage HF filter and DC filter on the AC mains side enables the DPS-2 to deliver optimum performance without interference noise. This is also ensured by the 60 VA audio toroidal transformer with additional isolation winding and magnetic tape shielding, guaranteeing absolutely hum- and noise-free operation in any situation.

    If necessary the GND lift switch can be used to disconnect DC ground from PE (protective earth) to eliminate noise caused by ground loops. In this case safety is not affected since the primary part and the housing stay firmly connected to PE of the power inlet. In addition the DPS-2 comes with a ground terminal screw connection to earth other devices or to use an earthing other than PE for the audio power supply.

    Status display via multicolor front LEDs - LED AutoDark mode
    The DPS-2 features two status LEDs on the front to provide a quick overview of the operating modes and error conditions (power, thermal and power overload, undervoltage, short, active output). A recessed push switch on the front panel enables the unique AutoDark mode with LEDs only lit on error states and shortly during power up.

    Another unique feature is the 24-page manual, which shows the technical data in detail using many measured values, illustrated with measurement diagrams. It also contains background information on linear and switching power supplies.

    AC Mains (Primary)
    Standard input voltage 115 V or 230 V, set by internal connector
    Input voltage range 95 V Ð 130 V or 200 V Ð 260 V
    Power consumption idle 1.6 watt
    Power consumption typical, 2 A load on Linear 38.5 watts
    Power consumption typical, 2 A load on _Filter 39.8 watts
    Fuses for 230 V 2 x 250 V / 0.63 A slow blow, size: 5x20 mm
    Fuses for 115 V 2 x 250 V / 1.2 A slow blow, size: 5x20 mm
    DC Linear Ð Secondary
    Maximum output voltage 12.2 V @ 0 A
    Minimum output voltage 11.5 V @ 3 A
    Continuous output current 2.5 A
    Continuous output power 30 watts
    Maximum output current 4 A
    Short circuit current <0.3 A
    Noise @ 1 A, AES17 30 _V, 3 _V A-weighted
    Noise @ 1 A, 100 kHz bandwidth 30 _V, 4 _V A-weighted
    Noise @ 2 A, AES17 111 _V, 14 _V A-weighted
    Noise @ 2 A, 100 kHz bandwidth 111 _V, 14 _V A-weighted
    Output impedance including cable 0.22 Ohm
    Load Regulation (0/1/2 A) 3.63 %
    Overload protection > 5 A
    Overheating protection > 80 ¡C (176 ¡F)
    Undervoltage detection < 9.5 V
    DC _Filter - Secondary
    Output voltage 12.0 V
    Continuous output current 2.5 A
    Continuous output power 30 watts
    Maximum output current 3.5 A
    Short circuit current <0.1 A
    Noise @ 0 - 3 A, AES17 < 2 _V, < 1 _V A-weighted
    Noise @ 0 - 3 A, 100 kHz bandwidth <3 _V, < 2 _V A-weighted
    Output impedance including cable 0.012 ohm
    Load Regulation (0/1/2 A) 0.20 %
    Overload protection > 3.2 A
    Overheating protection > 80 ¡C (176 ¡F)
    Undervoltage detection < 9.5 V
    General
    Dimensions (WxHxD) 130 x 44 x 205 mm, 5.1" x 1.7" x 8.1"
    Weight 1.89 kg (4.17 lbs)
    Temperature range +5 ¡C up to +40¡Celsius (41 ¡F up to 112 ¡F)
    Relative humidity < 75%, not condensing
    Package Contents DPS-2
    DC Sensor connection cable with lockable DC plug 2.1x5.5 mm, 1 m (3.3 ft)
    DC Sensor connection cable with DC plug 2.1x5.5 mm, 1 m (3.3 ft)
    Manual
    IEC Power cable, 1.5 m (4.9 ft)
