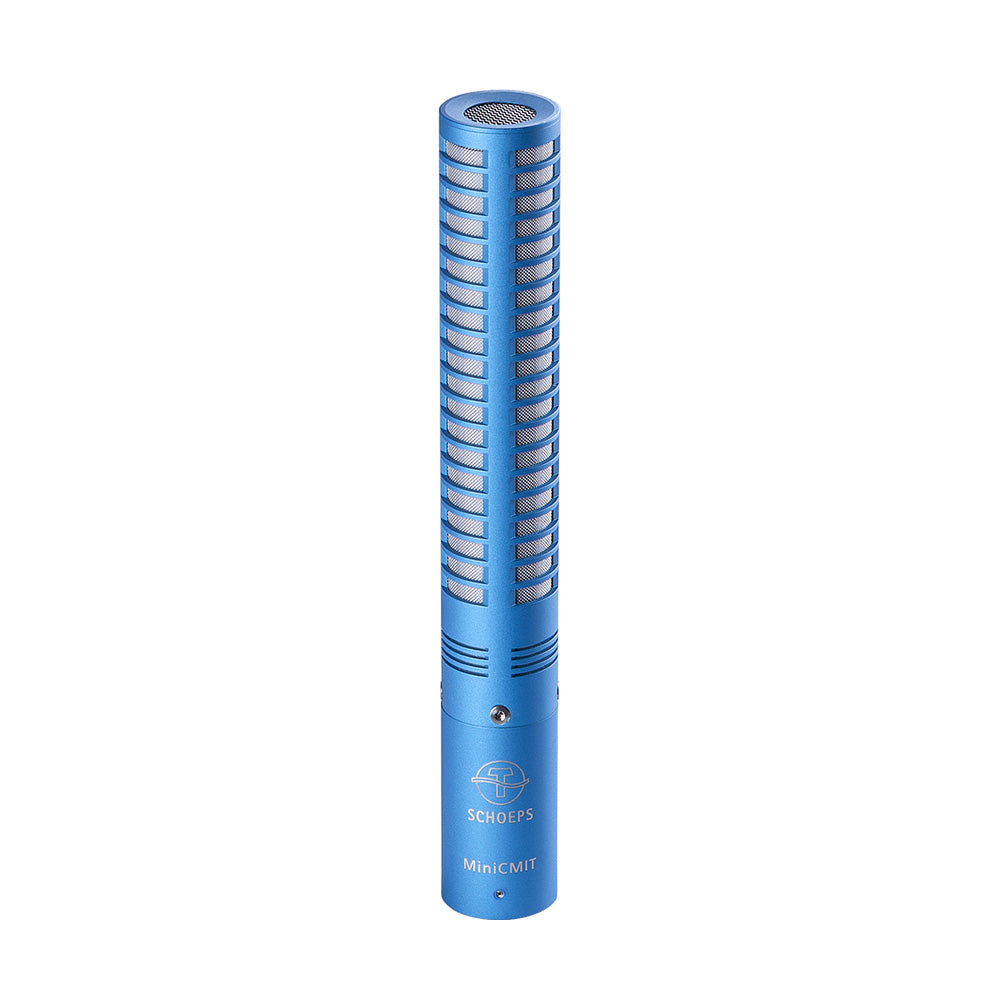

Schoeps MiniCMIT Miniature Shotgun Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
Features:
- Offers the characteristics of a CMIT in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz
| Sensitivity | 16.5 mV/Pa |
| Equivalent noise level (A-weighted) | 14 dB-A (P48) |
| Equivalent noise level (CCIR) | 24 dB (P48) |
| Maximum sound pressure level at 0.5% THD | 130 dB (P48), 115 dB (P12) |
| Powering voltage | P48 />24 V, P12 />11 V |
| Current consumption with 48 V | 2.3 mA |
| Output impedance | 100 ë© |
| Output socket | XLR-3M, analog, 1 channel |
| Filter(s) | fixed low-cut, 70 Hz, 24 dB/oct. |
| Length | 151 mm |
The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
Features:
- Offers the characteristics of a CMIT in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz
| Sensitivity | 16.5 mV/Pa |
| Equivalent noise level (A-weighted) | 14 dB-A (P48) |
| Equivalent noise level (CCIR) | 24 dB (P48) |
| Maximum sound pressure level at 0.5% THD | 130 dB (P48), 115 dB (P12) |
| Powering voltage | P48 />24 V, P12 />11 V |
| Current consumption with 48 V | 2.3 mA |
| Output impedance | 100 ë© |
| Output socket | XLR-3M, analog, 1 channel |
| Filter(s) | fixed low-cut, 70 Hz, 24 dB/oct. |
| Length | 151 mm |
