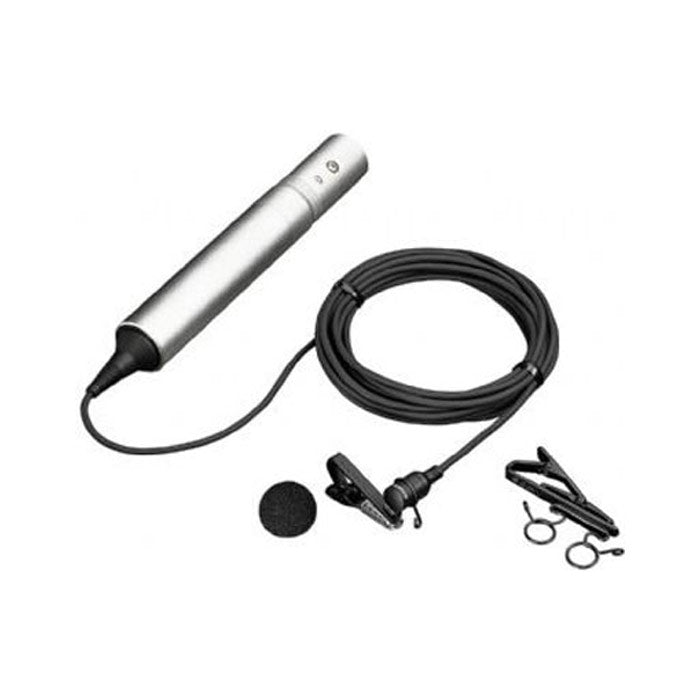

Sony ECM-77B Mini Omni-Directional Lavalier Condenser Microphone (XLR with Battery or 48v)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Perfect for television applications, Sony's ECM77B Omni-Directional Electret Condenser Microphone is a miniature lavalier microphone designed to be inconspicuous. This tiny mic runs on either phantom power or AA battery operation. The ECM77B comes with an XLR connector.
Features:
- Omni-directional lavallier condenser microphone
- High-performance frequency response: 40 -20,000 Hz
- Black finish
- Two-way powering system: AA-size battery or external power supply
| Capsule Type | Electret Condenser |
| Frequency Response | 40 Hz to 20 kHz |
| Directivity | Omni-directional |
| Sensitivity | -36.5 dB (15mV) |
| Dynamic Range | 90 dB |
| S/N Ratio | 64 dB or more |
| Inherent Noise (0dB=20µPa) | 30 dB SPL or less |
| Induction Noise from External Magnetic Field | 5 dB SPL or less |
| Wind Noise | 40 dB SPL or less (with windscreen, at 2 m/s) |
| Max SPL (dB SPL)(0dB=20µP) | 120 dB SPL |
| Connector | B type. Supplied with XLR connector in power supply unit (single AA size battery) |
| Cable Length | 9.8 feet |
| Power Requirements | DC 1.5 V, AA size battery or +48V phantom power |
| Dimensions | 1/4 diameter X 1/2 inch (Microphone head) 13/16 diameter X 5 1/4 inch (Power unit XLR type) |
| Weight | 4.3 oz (Includes Mic and Power Supply) |
Perfect for television applications, Sony's ECM77B Omni-Directional Electret Condenser Microphone is a miniature lavalier microphone designed to be inconspicuous. This tiny mic runs on either phantom power or AA battery operation. The ECM77B comes with an XLR connector.
Features:
- Omni-directional lavallier condenser microphone
- High-performance frequency response: 40 -20,000 Hz
- Black finish
- Two-way powering system: AA-size battery or external power supply
| Capsule Type | Electret Condenser |
| Frequency Response | 40 Hz to 20 kHz |
| Directivity | Omni-directional |
| Sensitivity | -36.5 dB (15mV) |
| Dynamic Range | 90 dB |
| S/N Ratio | 64 dB or more |
| Inherent Noise (0dB=20µPa) | 30 dB SPL or less |
| Induction Noise from External Magnetic Field | 5 dB SPL or less |
| Wind Noise | 40 dB SPL or less (with windscreen, at 2 m/s) |
| Max SPL (dB SPL)(0dB=20µP) | 120 dB SPL |
| Connector | B type. Supplied with XLR connector in power supply unit (single AA size battery) |
| Cable Length | 9.8 feet |
| Power Requirements | DC 1.5 V, AA size battery or +48V phantom power |
| Dimensions | 1/4 diameter X 1/2 inch (Microphone head) 13/16 diameter X 5 1/4 inch (Power unit XLR type) |
| Weight | 4.3 oz (Includes Mic and Power Supply) |
