Description

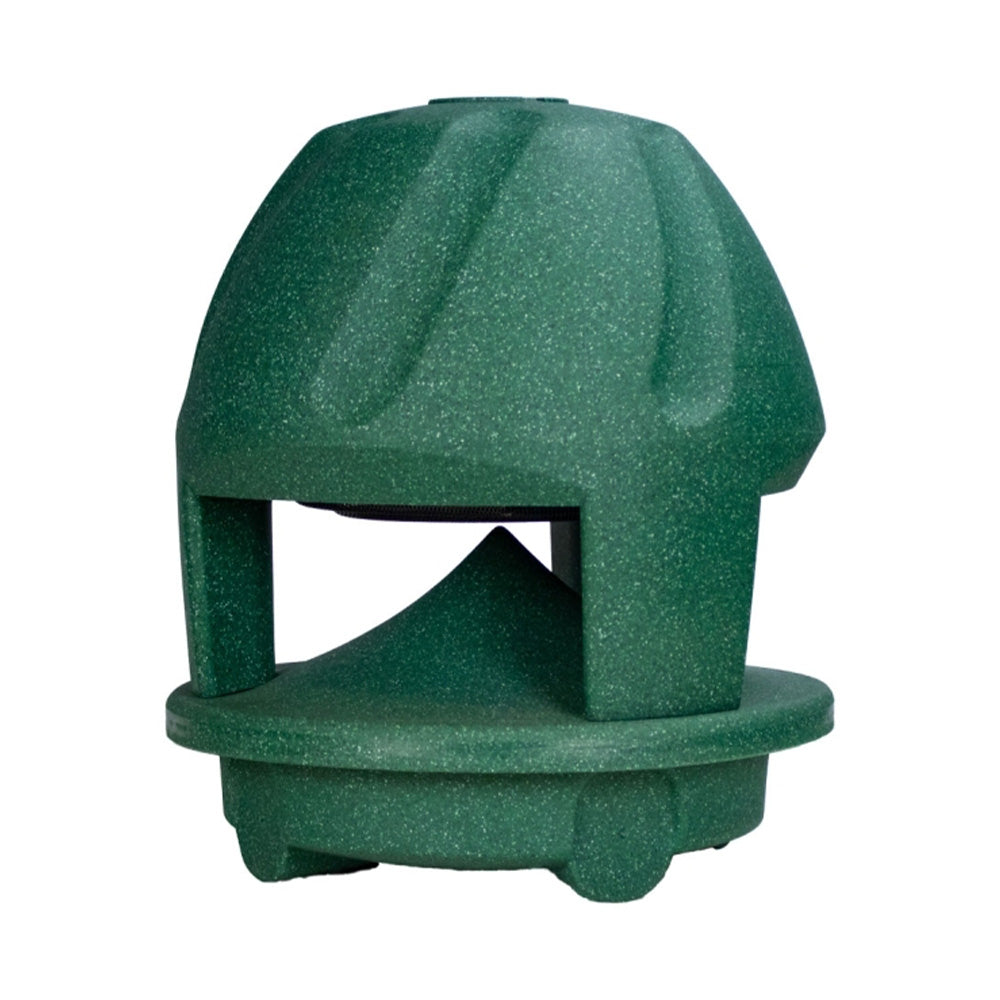

The SoundTube XT850-SUB is a premium outdoor subwoofer for installations requiring high-performance sound in a durable, in-ground speaker design. Not only is it UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability, the XT850-SUB is designed to deliver maximum low frequency response and high SPL using the special SuperTª transformer that handles low subwoofer frequencies with very low losses. The speakers sealed, in-ground enclosure design delivers true low end response and optimal of axis performance. The XT850-SUB includes theft resistant mounting hardware and a weatherproof 2-position tap switch for 25/70.7/100 Volt applications with transformer bypass position. IP-Rating is IP55.
Features:
- One 8" (203 mm) weatherproof polypropylene woofer with butyl rubber surround.
- UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability.
- Patented, durable and weather sealed ZeroReflectionª enclosure.
- Weather-proof 2-position tap switch for 25/70.7/100 V applications with transformer bypass position.
- Liquid-tight compression fittings for water-tight protection.
- Multiple wire inlet locations for fast and easy daisy chaining.
- Stainless steel fasteners and grille.
- Color options: granite green or sandstone.
Color | Green |
UPC | 644216232109 |
Manufacturer | SoundTube |
Manufacturer's Category | XT Extreme Weather Outdoor Series |
Height | 16.42 in / 417.1 mm |
Width/Diameter | 14.17 in / 359.9 mm |
Shipping Weight | 22 lbs / 10 kg | |
Carton Height | 19 in / 482.6 mm |
Carton Length | 16.25 in / 412.75 mm |
Carton Width | 16.25 in / 412.75 mm |
Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts |
Optional Accessories | Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT8)|Tap Switch Cover (CVR-XT-TAPSW) |
Source Inputs | Wire Leads |
IP Rating | IP55 |
Frequency Response (± 10 dB) | 30 Hz - 150 Hz |
Frequency Response (± 3 dB) | 46 Hz - 150 Hz |
Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
Max. Continuous Power RMS | 80 W |
Max. Program Power | 160 W |
Nominal Impedance (_ Ohms) | 8 _ |
Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 86 dB |
Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
The SoundTube XT850-SUB is a premium outdoor subwoofer for installations requiring high-performance sound in a durable, in-ground speaker design. Not only is it UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability, the XT850-SUB is designed to deliver maximum low frequency response and high SPL using the special SuperTª transformer that handles low subwoofer frequencies with very low losses. The speakers sealed, in-ground enclosure design delivers true low end response and optimal of axis performance. The XT850-SUB includes theft resistant mounting hardware and a weatherproof 2-position tap switch for 25/70.7/100 Volt applications with transformer bypass position. IP-Rating is IP55.
Features:
- One 8" (203 mm) weatherproof polypropylene woofer with butyl rubber surround.
- UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability.
- Patented, durable and weather sealed ZeroReflectionª enclosure.
- Weather-proof 2-position tap switch for 25/70.7/100 V applications with transformer bypass position.
- Liquid-tight compression fittings for water-tight protection.
- Multiple wire inlet locations for fast and easy daisy chaining.
- Stainless steel fasteners and grille.
- Color options: granite green or sandstone.
Color | Green |
UPC | 644216232109 |
Manufacturer | SoundTube |
Manufacturer's Category | XT Extreme Weather Outdoor Series |
Height | 16.42 in / 417.1 mm |
Width/Diameter | 14.17 in / 359.9 mm |
Shipping Weight | 22 lbs / 10 kg | |
Carton Height | 19 in / 482.6 mm |
Carton Length | 16.25 in / 412.75 mm |
Carton Width | 16.25 in / 412.75 mm |
Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts |
Optional Accessories | Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT8)|Tap Switch Cover (CVR-XT-TAPSW) |
Source Inputs | Wire Leads |
IP Rating | IP55 |
Frequency Response (± 10 dB) | 30 Hz - 150 Hz |
Frequency Response (± 3 dB) | 46 Hz - 150 Hz |
Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
Max. Continuous Power RMS | 80 W |
Max. Program Power | 160 W |
Nominal Impedance (_ Ohms) | 8 _ |
Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 86 dB |
Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
