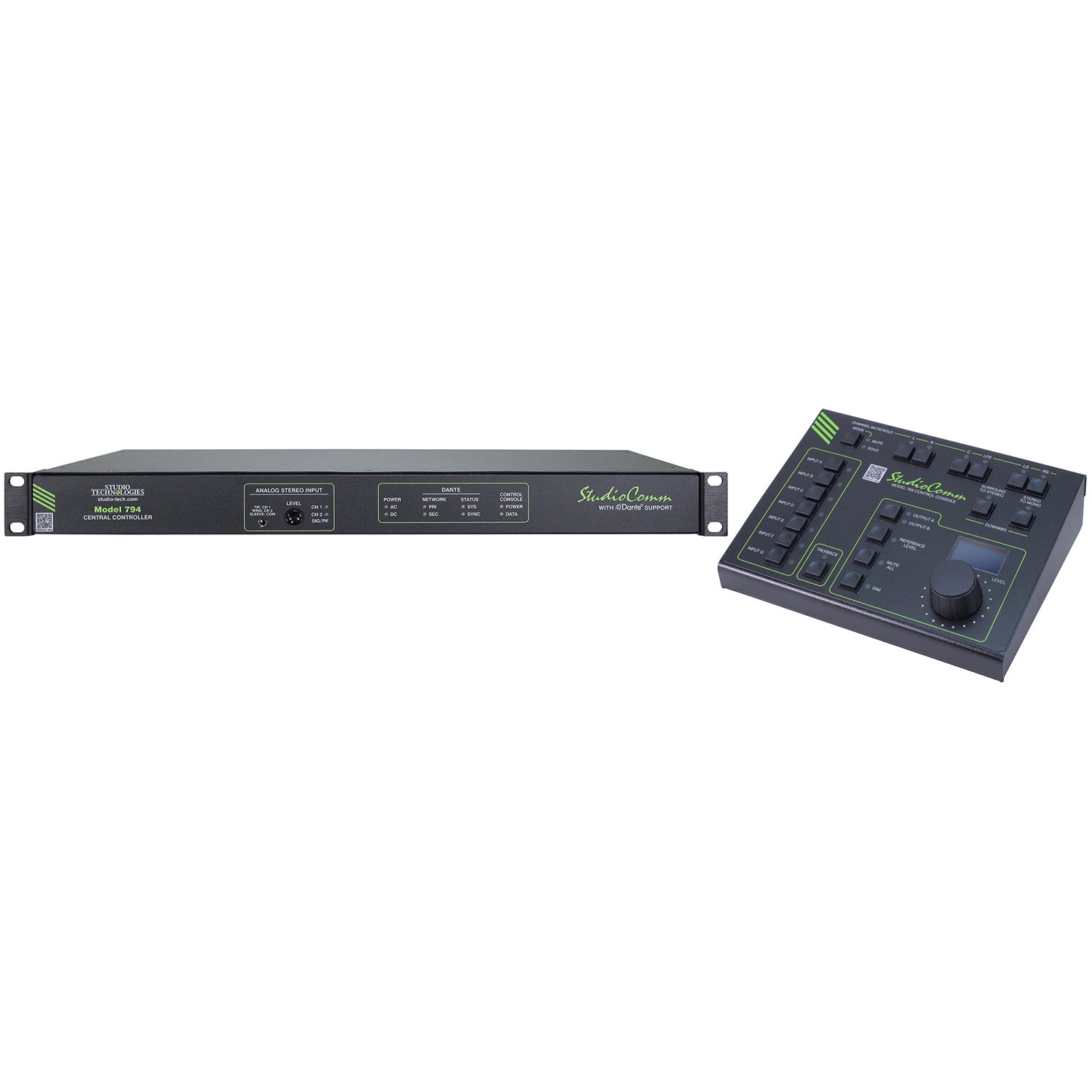

Studio Technologies Model 794-01/795 - StudioComm Monitor Controller System (Analog / Dante)

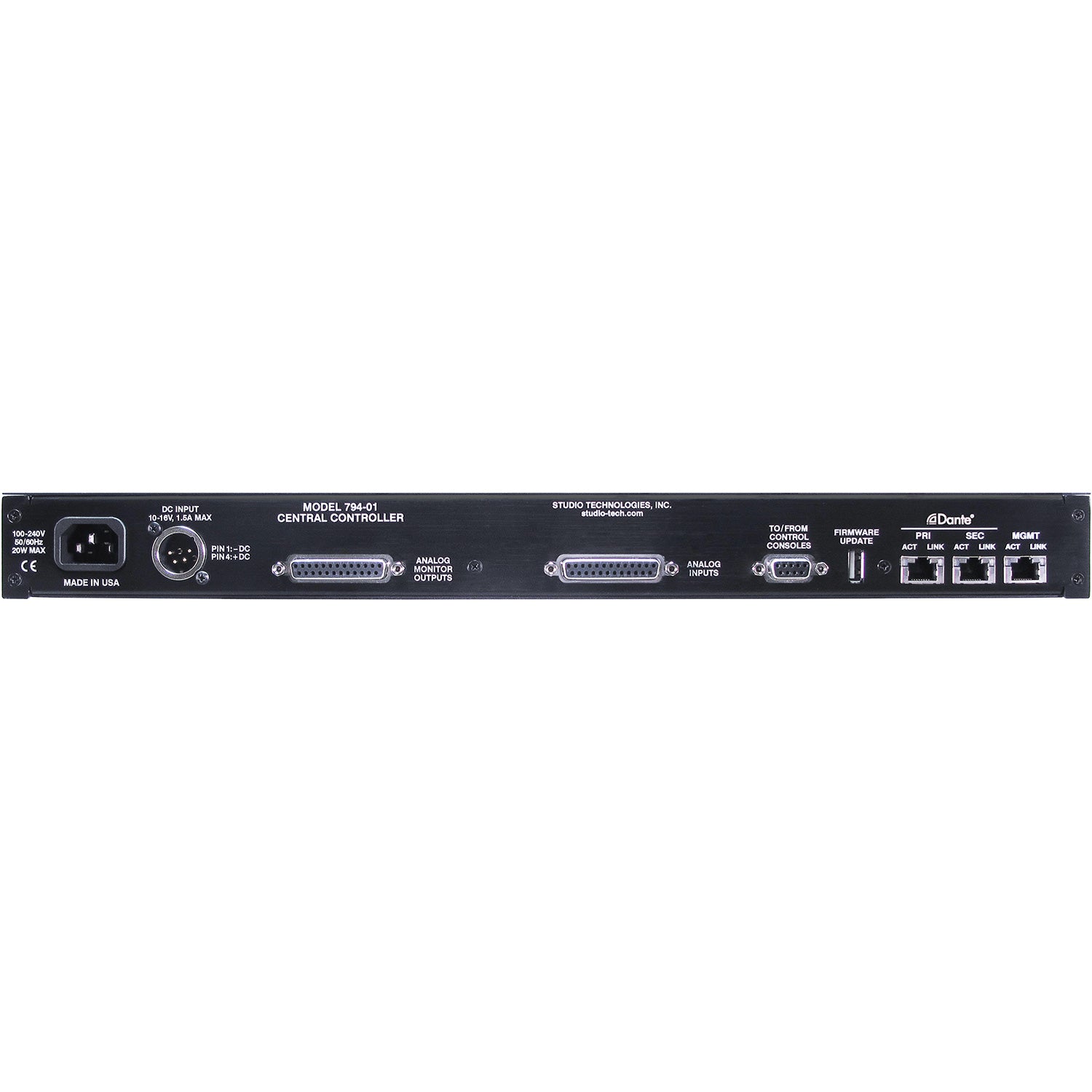

A StudioComm for Dante system designed for supporting 5.1 and stereo monitoring applications. Dante and analog inputs and outputs. Features include two 5.1 (6-channel) Dante digital audio inputs, two stereo (2-channel) Dante digital audio inputs, one 5.1 (6-channel) analog audio input, and two stereo (2-channel) analog line inputs. Also includes two 5.1 (6-channel) Dante digital audio outputs, two stereo (2-channel) Dante digital audio outputs, one 5.1 (6-channel) analog audio output, and one stereo (2-channel) analog audio output. Includes bass management, downmix, and cue-mix capability. Three configurable Gigabit Ethernet network interfaces; two can be used for transporting audio (Redundant Dante) and the third for accessing the management menu system. Includes shielded multi-conductor cable with a 9-pin male D-sub plug on each end for linking Model 794-01 with Model 795. Powered by 100-240 V, 50/60 Hz. Can also be powered by an external source of 12 Vdc. (Connect both for redundant powering.)
