4REA4 by DiGiCo


Changing the Rules for Networked Audio in Installations.

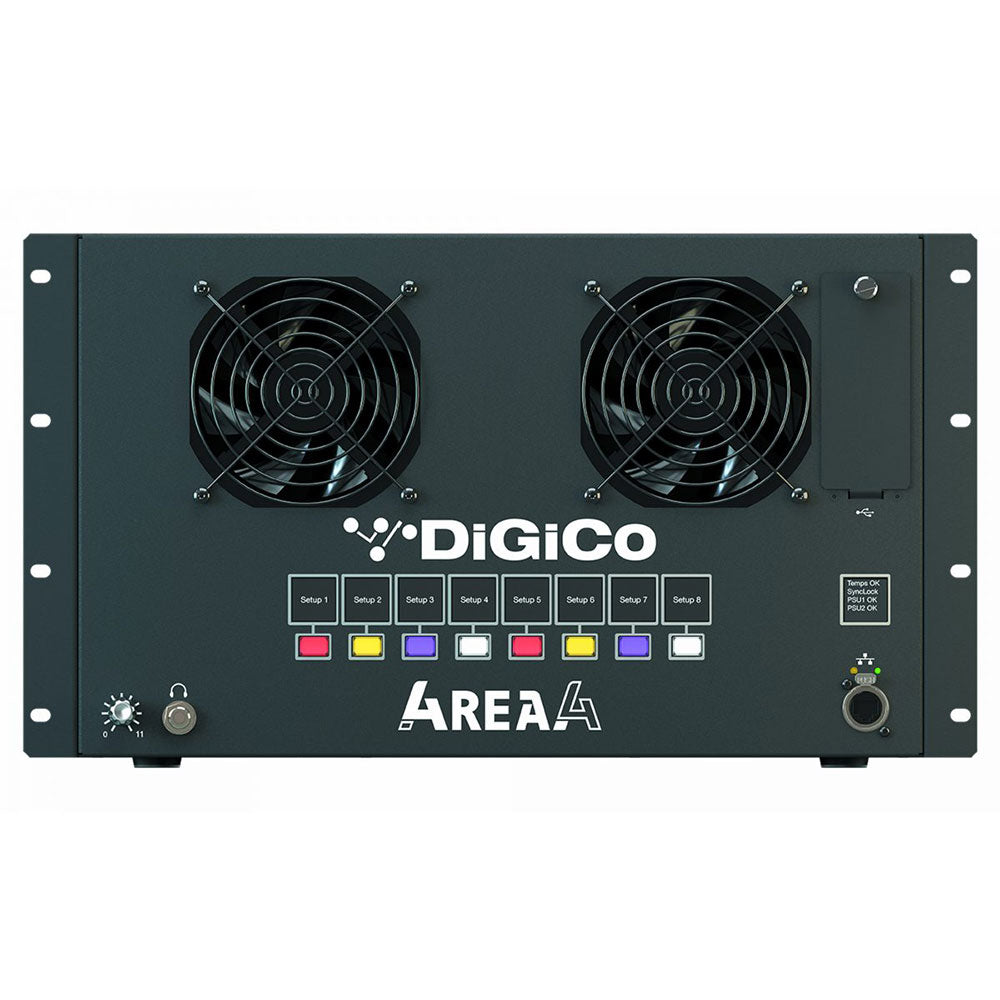

4REA4 ("Four-yah Four") puts high quality audio at the heart of your installed sound solution, giving you the tools to build and shape the right solution with ease. At your fingertips you have a vast processing resource and redundancy support not normally found at this price point. The ability to integrate with top tier live performance products natively without complex programming enhances the flexibility of this solution delivering a truly unique audio processing product for installations.

4REA4 is a new type of system processor leveraging the power of FPGA technology, 96kHz sample rate and intuitive, console-based, software to enable superior performance networked audio throughout your venue.

The mainframe can process 128 input channels and 56 outputs with on board connectivity via a range of network ports, SD Card slots (up to 3) and DMI card slots (up to 4). In addition to processing channels, 4REA4 can act as a point-to-point router for up to 512 channels, so any channel from any device on the network can routed directly to any other device on the network without affecting your processing capacity.

You can also split the workspace into 4 zones each with their own stereo master, to which access is limited through User Groups and Permissions.

It also has 8 Macros that can change the configuration at the touch of a button, so the system can be optimised for a range of set ups and applications, then recalled on demand.

The 4REA4 has bi-directional audio connectivity with any device on the network in both its proprietary format and a range of other standards (Dante, MADI, Avoim, Waves SoundGrid, Optocore, ME-1, AES/EBU). The system can also interface with external control devices using TCP/IP, GPIO, Midi and AMX/Crestron.

The system has a range of I/O and control peripherals that can interface over a standard, standalone network. It’s designed to be plug and play working off the shelf using Layer 2 network hardware; no IP or Mac addresses, just simple ID settings established over a web browser.

Building the software platform in a mixing console style is designed to open up the set-up, control and management to in-house Technical Managers or Heads of Audio, allowing venues to be in control of updates, changes or upgrades should they have the right in-house expertise.

Example Systems (click to expand):

  • Dale #:

    DICO-XA4REA4
  • Availability:

    Not in Stock - Reserve Yours
4REA4 puts high quality audio at the heart of your installed sound solution, giving you the tools...

  • Dale #:

    DICO-XA168
  • Availability:

    Not in Stock - Reserve Yours
16 mic/line in and 8 line out I/O Expander, using A3232 network protocol and providing additional...

  • Dale #:

    DICO-XA164WL
  • Availability:

    Not in Stock - Reserve Yours
16 mic/line in and 4 line out I/O Expander using A3232 network protocol and providing fixed, addi...

  • Dale #:

    DICO-XACON6
  • Availability:

    Not in Stock - Reserve Yours

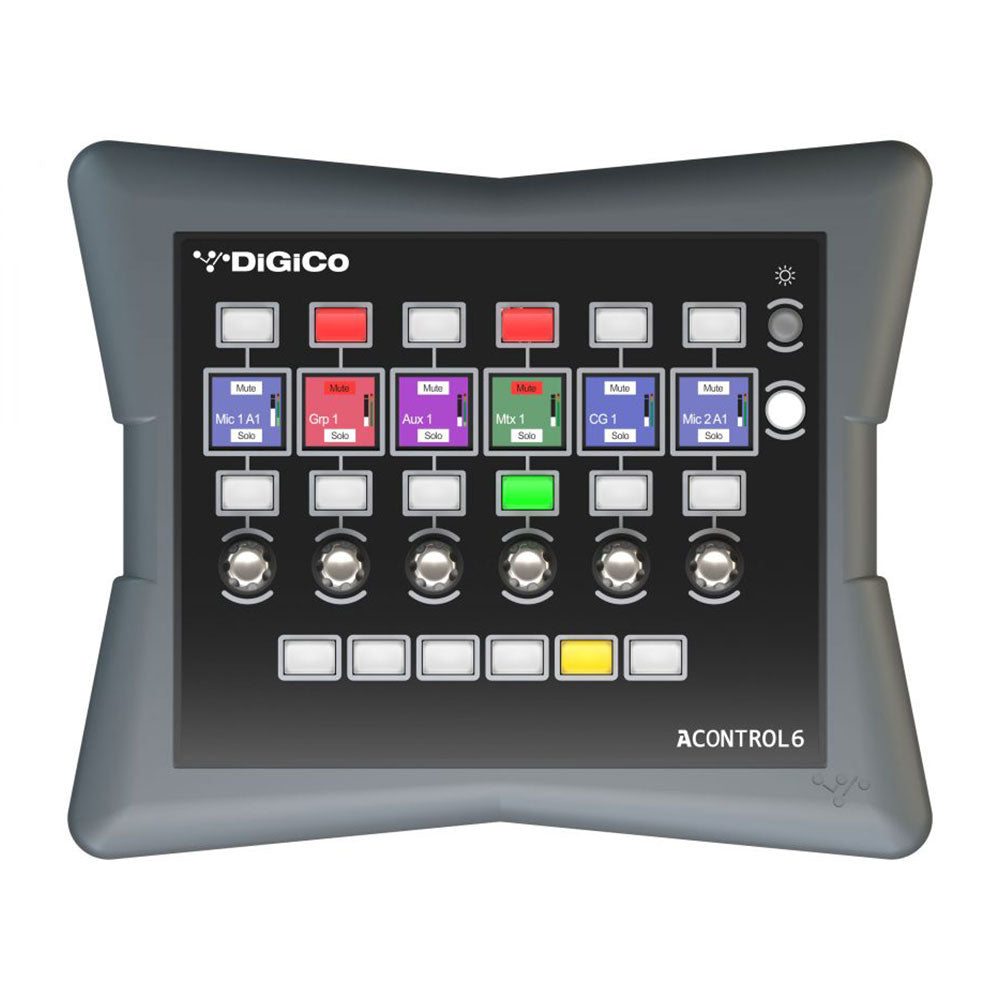

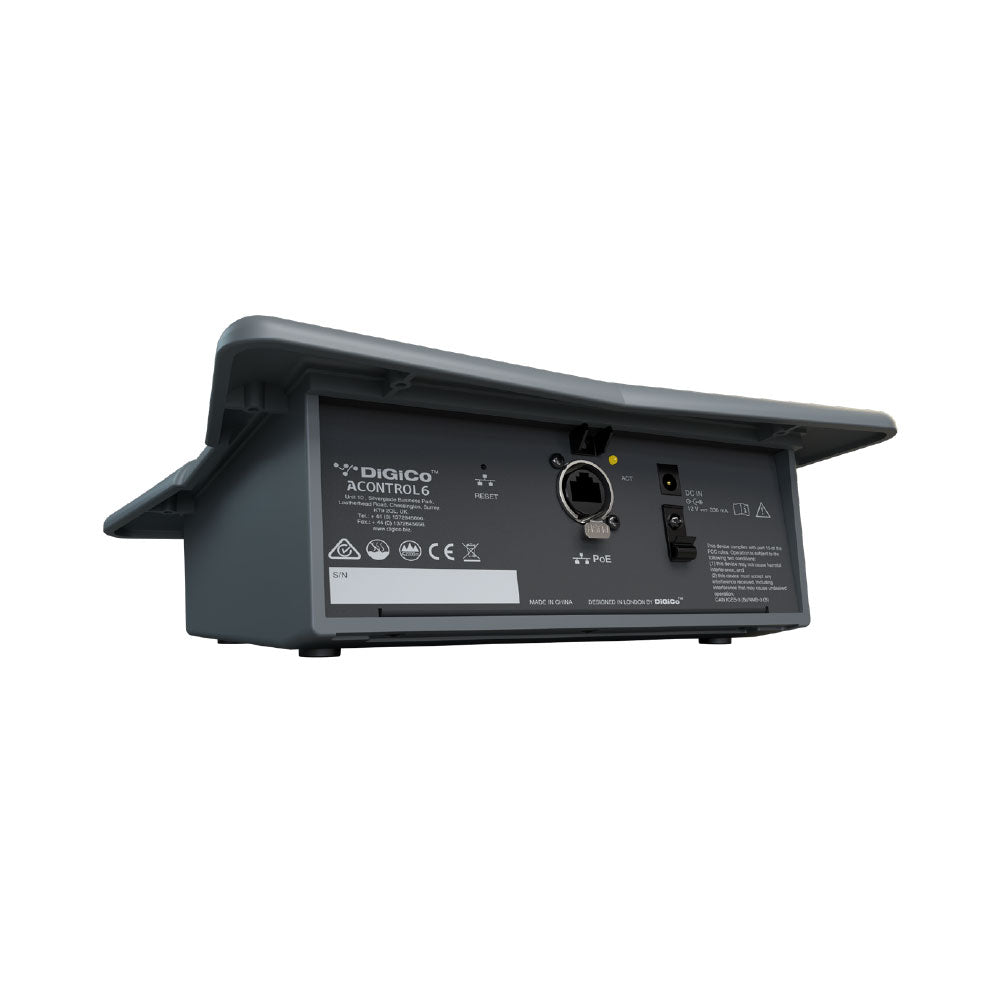

Multi-layer programmable remote controller with TCP/IP connectivity over standard Ethernet. Six r...

  • Dale #:

    DICO-XACON8
  • Availability:

    Not in Stock - Reserve Yours

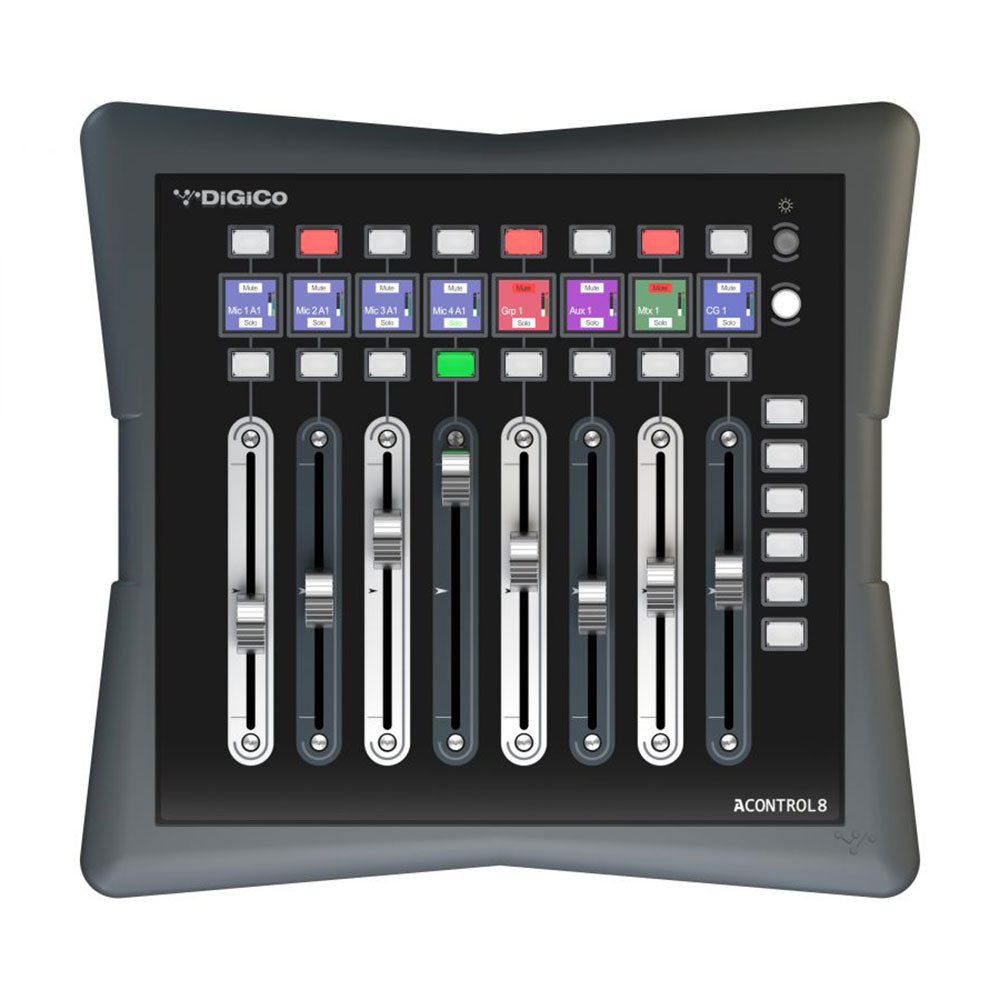

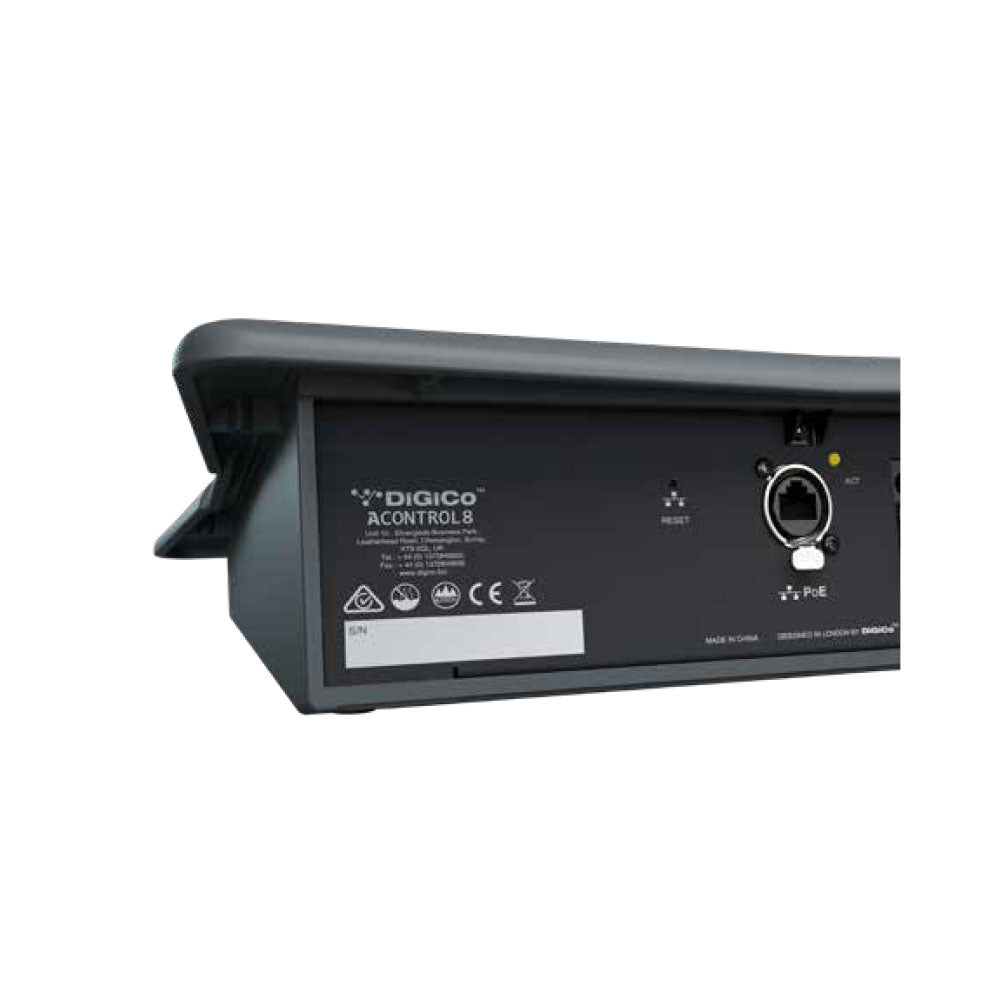

Multi-layer programmable remote controller with eight 100mm motorised faders designed specificall...

  • Dale #:

    DICO-XACON1US
  • Availability:

    Not in Stock - Reserve Yours

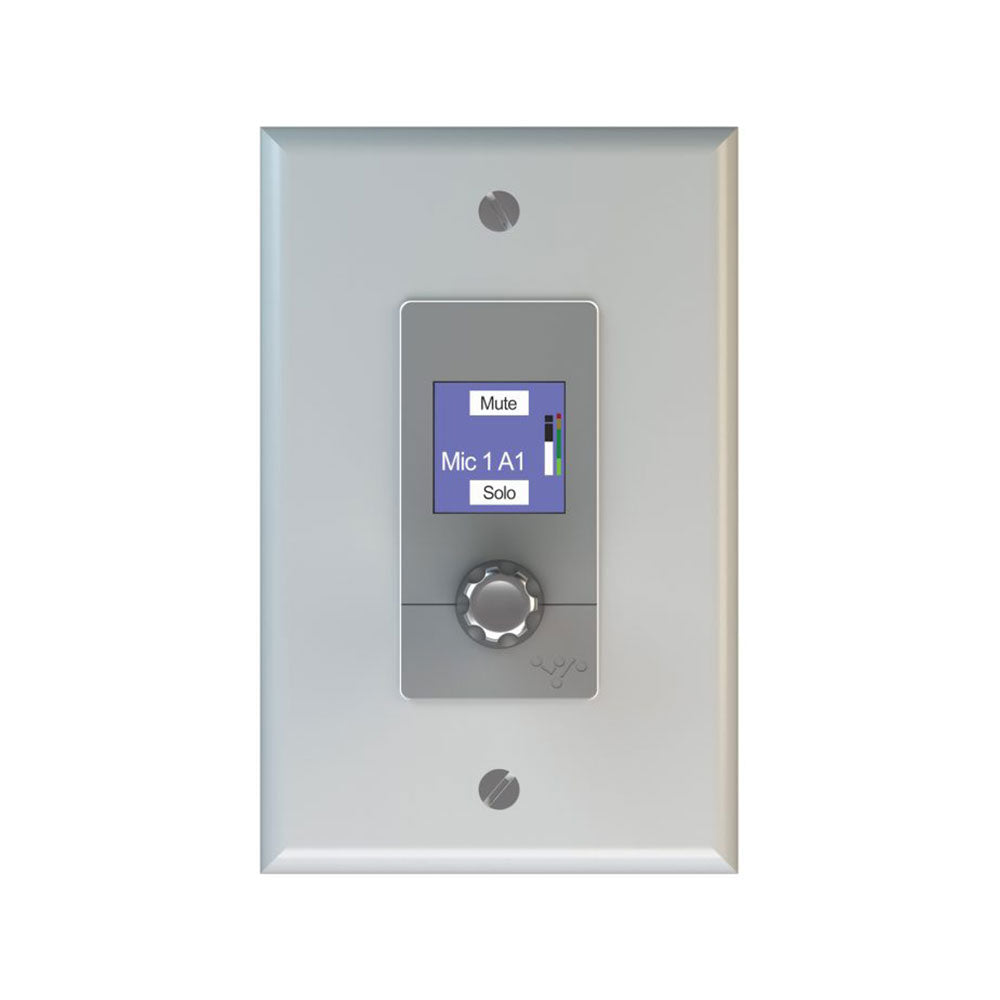

Easy to use, single gang wall panel featuring a programmable rotary encoder with TFT Display.  Co...

  • Dale #:

    DICO-XA88GPIO
  • Availability:

    Not in Stock - Reserve Yours
The 4REA4 Customised DSP Engine has 8×8 on board GPIO ports.  You can extend the number of GPIO's...

  • Dale #:

    DICO-XASTAR
  • Availability:

    Not in Stock - Reserve Yours
The ASTAR is a remote audio networking hub that can be connected to a DiGiCo 4REA4 system fitted ...

  • Dale #:

    DICO-XA168D
  • Availability:

    Not in Stock - Reserve Yours
16 mic/line in and 8 line out expander I/O unit,providing portable remote I/O connectivity where ...

  • Dale #:

    DICO-XA164DWL
  • Availability:

    Not in Stock - Reserve Yours
A 16 mic/line and 4 line out expander unit with Dante Connectivity. The A164D WALL LCD provides f...
